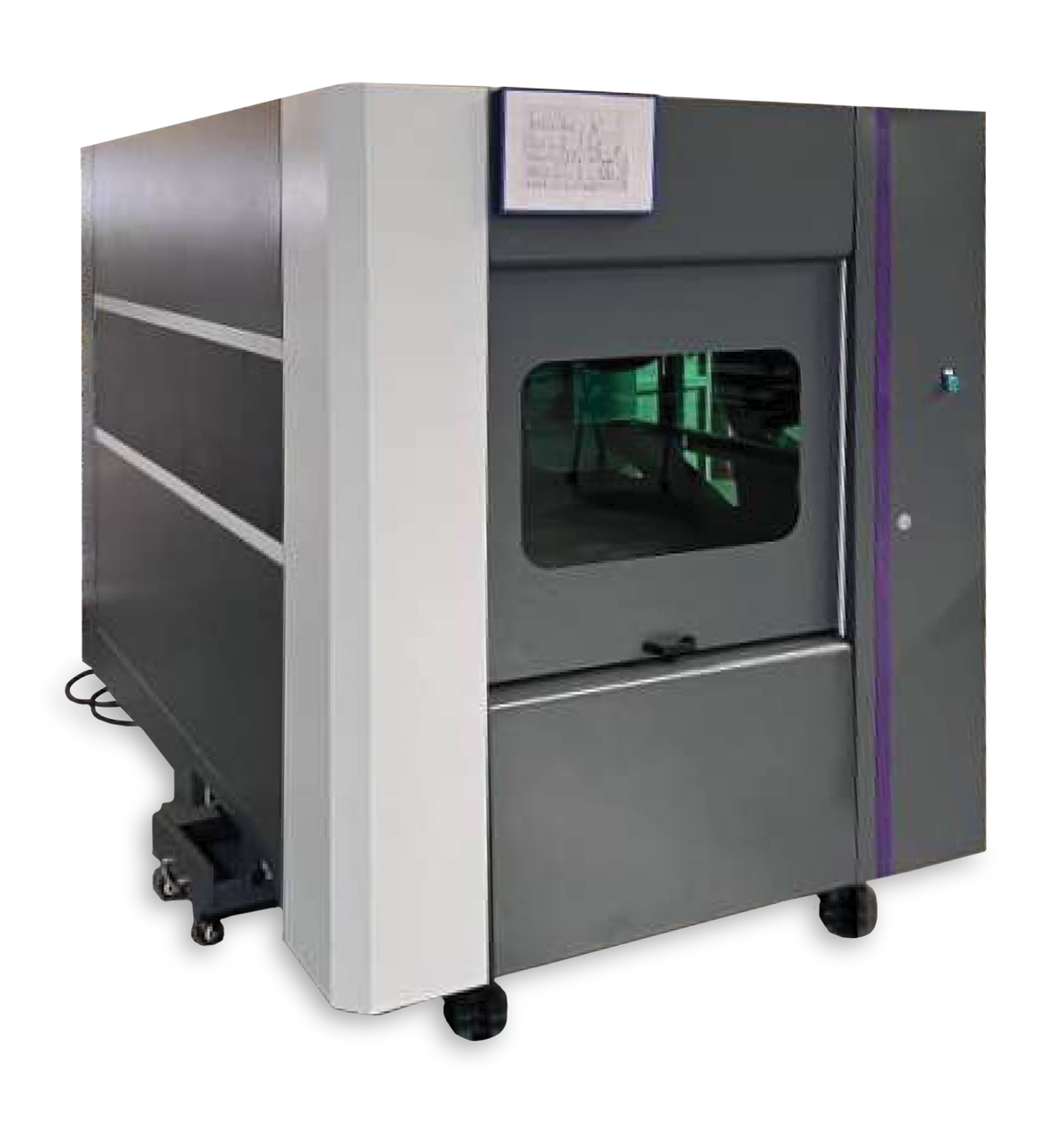

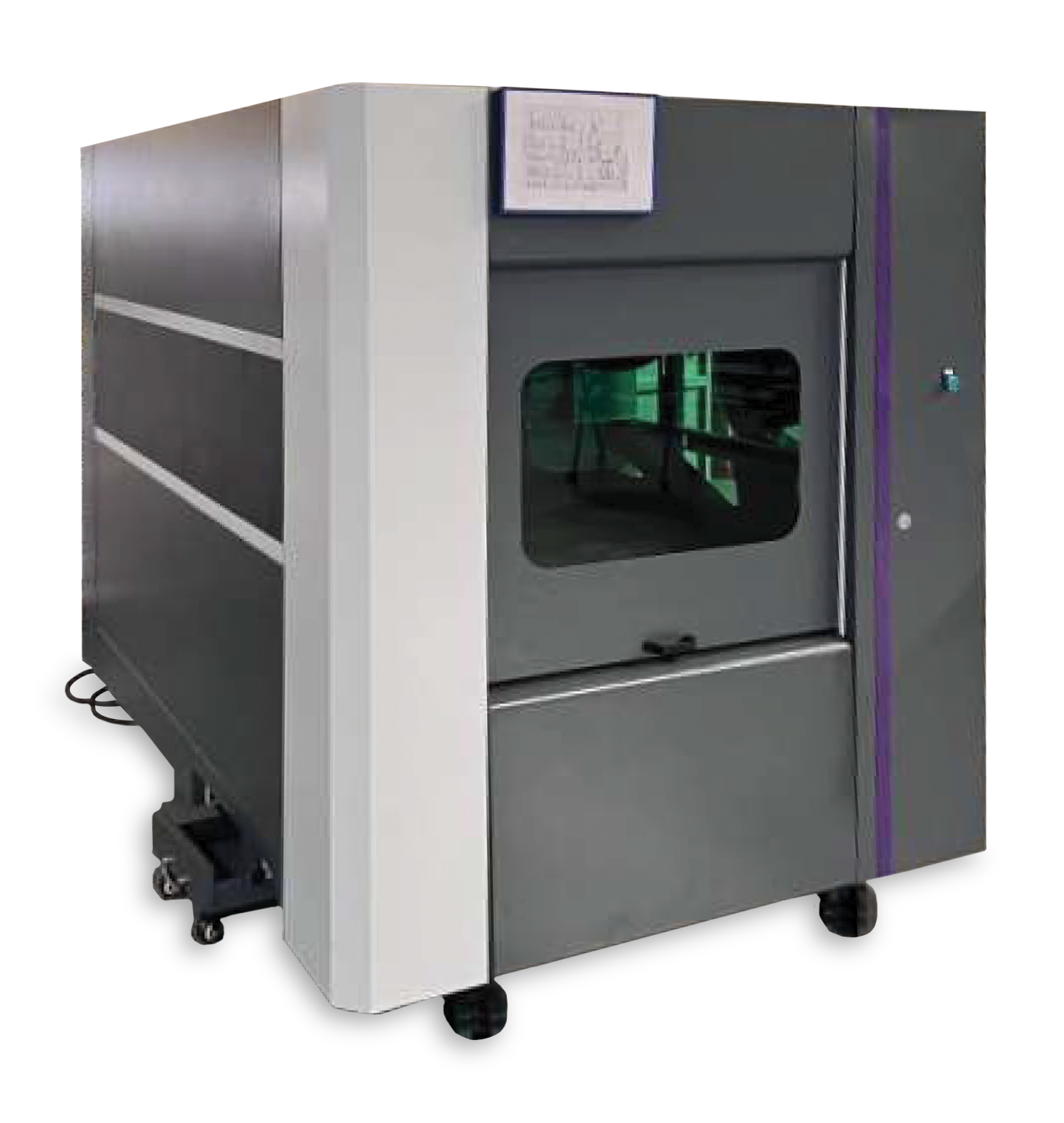

TOPGUN HN-FL2412E FIBER LASER CNC CUTTING MACHINE
Base RRP:
Delivery and Shipping
Delivery and Shipping
Delivery is dependent on location, products ,quantity and weight. Get in touch with a reseller to find the closest shipping location to you.
The Honeybee HN-FL2412E is a 6 kW fiber laser CNC cutting machine with a 1200 × 2400 mm working area, capable of cutting carbon steel, stainless steel, aluminum, and brass up to recommended thicknesses of 25 mm, 16 mm, 14 mm, and 14 mm respectively. It features a MAX anti-reflective laser, BOCI FSCUT laser head, FSCUT + CypCut CNC system, and YASKAWA servo motors with MotoReducer. The water-cooled laser head, automatic lubrication, and heavy-duty IP54 enclosed design provide reliability, efficiency, and easy maintenance for demanding industrial environments.
Product Features
| Feature | Description |
|---|---|
| High-Power Laser | 6 kW MAX anti-reflective fiber laser for high-speed, precision cutting |
| Large Work Area | 1200 × 2400 mm cutting table for full-size sheet operations |
| High Precision | ±0.02 mm/m positioning and repositioning accuracy |
| Advanced CNC System | FSCUT hardware + CypCut software integrates CAD, Nesting, CAM; easy operation |
| BOCI Laser Head | Closed-loop autofocus, slag-free cutting, water-cooled, lens replaceable in 5 min |
| Stable Mechanics | Heavy welded table, Hiwin linear guides, and MotoReducer planetary gearbox for minimal vibration |
| Automatic Lubrication | Adjustable frequency and quantity to extend the guide rail and ball screw lifespan |
| Environmentally Friendly | Full-enclosed design with optional small fume extraction device |
| Servo System | YASKAWA servo motors for reduced vibration, fast response, and precise motion |
| Power & Efficiency | 41 kW rated power with an energy-saving water chiller and Schneider electrical protection |
